3D SCANNING

Capture your reality and digitize your world.

Save Time, Reduce Costs, & Increase Accuracy with Reality Capture.

Whether you are looking to digitally preserve a tiny museum-worthy artifact, or determine the real-world conditions of a multi-level construction site, 3D laser scanning allows you to capture field data with extreme precision. This data can then be converted into usable digital 3D models to allow for more informed decision making.

Learn More About How Your Business Can Benefit From This Ever-Advancing Technology...​

Our Services

design-services 1

Post-Processing

project-management60x60

Inspection Analysis

artistic-rendering 1

Digital Rendering

model-making 1

Model Making

grand format 1

Grand Format Printing

privately-help

Scanning Team

laser-scanning 1

Equipment Rentals

dollar 1

Equipment Sales

Point Cloud Scanning To BIM - Case Study

Landmark Kinmouth Building

Background

BluEdge was tasked with capturing the Landmark Kinmouth Building, located in Asbury Park, NJ. Erected in 1911, this historic building once housed the Savoy Theater. This 5-story building was built by Walter Read with design influenced by the works of Louis Sullivan.

Reality Capture Process

Over the course of one day, BluEdge scanned approx. 65,000 sq. ft. of the Landmark Kinmouth Building, including:

  • Interior & Exterior Views
  • 5 Stories
  • Attic Areas
  • Roof
  • Basement areas

Point Cloud Deliverables

After scanning was complete, BluEdge began the post-processing phase. We provided "Architectural Detail" files which includes walls, floors, ceilings, columns, door, and window penetrations.



We provided our client with cleaned and aligned Point cloud files format compatible for import into REVIT, as well as a Revit model.

Exterior of Building of Landmark Kinmouth Building

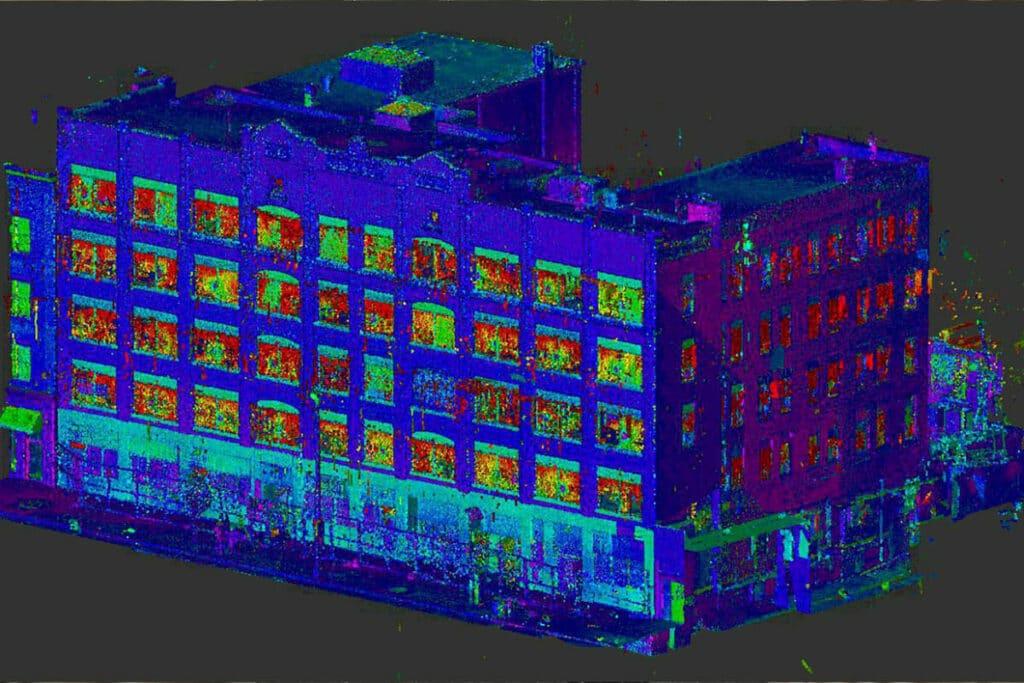

Cleaned Up, Aligned, Point Cloud File of Landmark Kinmouth Building

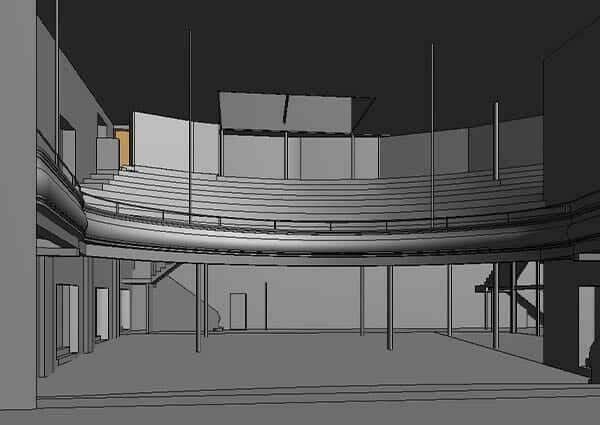

Revit Model of Landmark Kinmouth Building

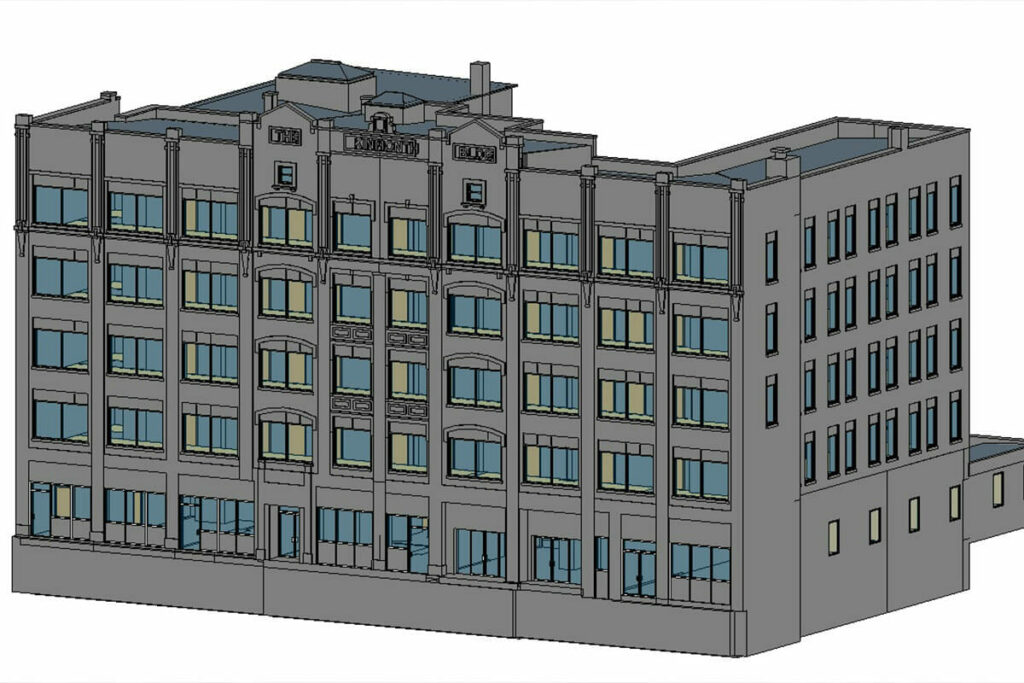

Exterior Revit Model of Landmark Kinmouth Building
3d-scanning-revit-model-landmark-kinmouth-building-asbury

Frequently Asked Questions

Blueprints can often be inaccurate and not take into account minor renovations and remodels. 3D laser scanning provides you with engineering-grade, exact measurements. Reduce reworks on your project by exposing inaccuracies early in the process before they turn into costly change orders.

Need a Quote?

Whether you are looking for equipment rentals or a full-service solution, our team of experts has you covered. Send us a brief message about your project and one of our 3D experts will reach out to you shortly.

Please include any photos, drawings, or diagrams that will give us a better idea of your project.
